Features:
2/2 way direct lifting diaphragm type
0-5bar
Flow channel 15-50mm
Detachable repair
Sealing material: NBR rubber - EPDM rubber - fluoro rubber -specific material
Suitable for water, air, water vapor, light oil, natural gas, etc.
Provide lP65 three-pole connector in accordance with UNl ISO 4400 (DIN 43650A) / explosion-proof coil
Product features
| General characteristics | |||
| Body material | Brass | ||
| Sealing material | NBR | EPDM | VITON |
| Temperature | 80℃ | 140℃ | 150℃ |
| Insulation grade | H | ||
| Voltage | 220-230VAC 50-60Hz | 100-120VAC 60Hz | 12-24DC |
| Power | 15-28VA | 15-28VA | 11-20W |
| Ambient temperature | -10℃-80℃ | ||
| Installation | Installed according to the flow direction of the valve body.to improve the life and reliability, install it horizontal upward is best | ||
| Connection | The standard is G, and the thread requirements such as NPT can be selected. | ||
| Voltage fluctuation | ±10% | ||
| Can be equipped with coil | B41/B51/A42F | ||
| Specification sheet (internal thread interface) | ||||||||||||||

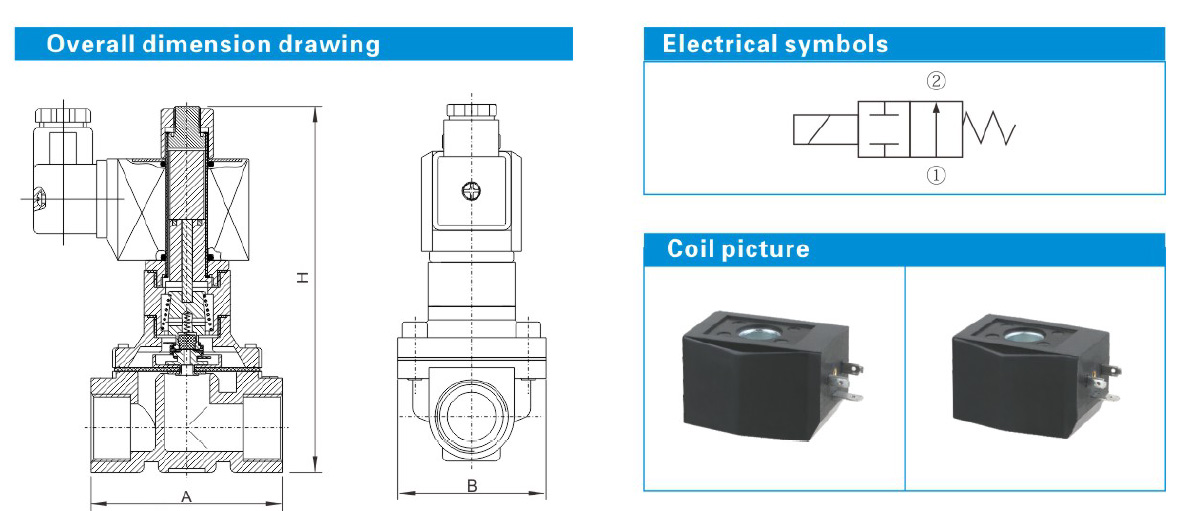

| Connection way | Flow aperturemm mm | KV value m3/h | Pressure difference(BAR) | DimensionsLength x width x height AxBxC | Model(voltage is 220v)X=N or E or V | Weight KG | ||||||||
| MiniMum pressure | Maximum working pressure | |||||||||||||
| Air，gas | Water, liquid | Light oi | ||||||||||||
| AC | DC | AC | DC | AC | DC | |||||||||
| 3/8" | 15 | 2.4 | 0 | 5 | 5 | 5 | 5 | 5 | 5 | 66x57x100 | ZS-15K-31X | 0.85 | ||
| 1/2" | 15 | 2.4 | 0 | 5 | 5 | 5 | 5 | 5 | 5 | 66x57x100 | ZS-15K-41X | 0.8 | ||
| 3/4" | 20 | 6.3 | 0 | 5 | 5 | 5 | 5 | 5 | 5 | 68x57x107 | ZS-20K-51X | 1.1 | ||
| 1" | 25 | 8.3 | 0 | 5 | 5 | 5 | 5 | 5 | 5 | 98x76x115 | ZS-25K-61X | 1.45 | ||
| 11/4" | 32 | 19.4 | 0 | 5 | 5 | 5 | 5 | 5 | 5 | 112x86.5x150 | ZS-32K-71X | 2.3 | ||
| 11/2" | 40 | 22.4 | 0 | 5 | 5 | 5 | 5 | 5 | 5 | 123x94x160 | ZS-40K-81X | 2.9 | ||
| 2" | 50 | 34.8 | 0 | 5 | 5 | 5 | 5 | 5 | 5 | 165x123x176 | ZS-50K-91X | 4.8 | ||
