Features:
2/2 way direct lifting diaphragm
0-10bar
Flow channel 15-50mm
Detachable repair
Sealing material: NBR rubber - EPDM rubber - fluoro rubber -specific material
Suitable for water, air, water vapor, light oil, natural gas, etc.
Provide lP65 three-pole connector in accordance with UNl ISO 4400 (DIN 43650A/ lead connection /explosion-proof coil
Product features
| General characteristics | |||
| Body material | Stainless steel | ||
| Sealing material | NBR | EPDM | VITON |
| Temperature | 80℃ | 140℃ | 150℃ |
| Insulation grade | H | ||
| Voltage | 220-230VAC 50-60Hz | 100-120VAC 60Hz | 12-24DC |
| Power | 15-28VA | 15-28VA | 15-20W |
| Ambient temperature | -10℃-80℃ | ||
| Installation | Installed according to the flow direction of the valve body.to improve the life and reliability, install it horizontal upward is best | ||
| Connection | The standard is G, and the thread requirements such as NPT can be selected. | ||
| Voltage fluctuation | ±10% | ||
| Can be equipped with coil | B41/B51 | ||

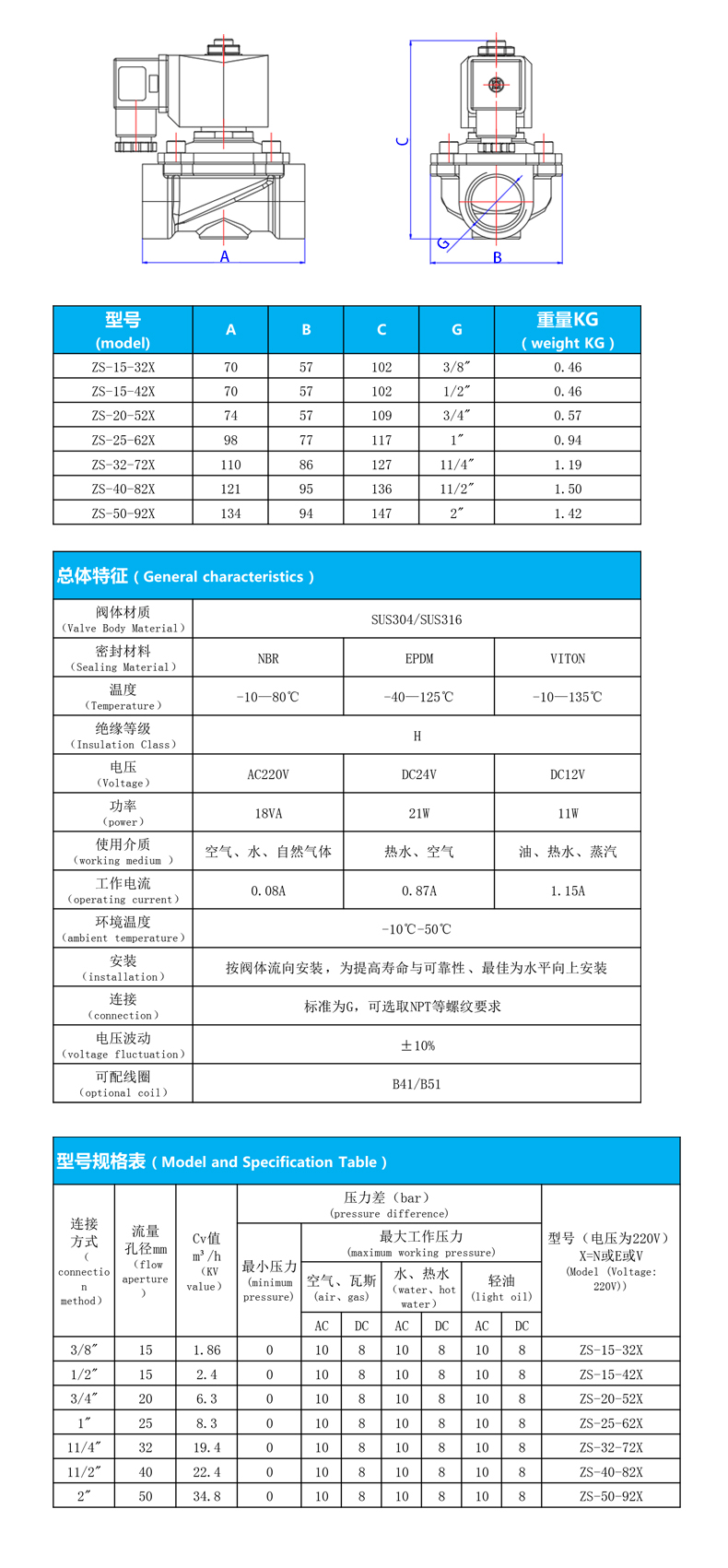

| Specification sheet (internal thread interface) | ||||||||||||||
| Connection way | Flow aperturemm mm | KV value m3/h | Pressure difference(BAR) | DimensionsLength x width x height AxBxC | Model(voltage is 220v)X=N or E or V | Weight KG | ||||||||
| MiniMum pressure | Maximum working pressure | |||||||||||||
| Air，gas | Water, liquid | Light oi | ||||||||||||
| AC | DC | AC | DC | AC | DC | |||||||||
| 3/8" | 15 | 2.4 | 0 | 10 | 7 | 10 | 7 | 7 | 4 | 70x56x100 | ZS-15-32X | 0.85 | ||
| 1/2" | 15 | 2.4 | 0 | 10 | 7 | 10 | 7 | 7 | 4 | 70x56x100 | ZS-15-42X | 0.8 | ||
| 3/4" | 20 | 6.3 | 0 | 10 | 7 | 10 | 7 | 7 | 4 | 72x56x107 | ZS-20-52X | 1.1 | ||
| 1" | 25 | 8.3 | 0 | 10 | 7 | 10 | 7 | 7 | 4 | 98x76x106 | ZS-25-62X | 1.45 | ||
| 11/4" | 32 | 19.4 | 0 | 10 | 7 | 10 | 7 | 7 | 4 | 112x86.5x150 | ZS-32-72X | 2.3 | ||
| 11/2" | 40 | 22.4 | 0 | 10 | 7 | 10 | 7 | 7 | 4 | 123x94x160 | ZS-40-82X | 2.9 | ||
| 2" | 50 | 34.8 | 0 | 10 | 7 | 10 | 7 | 7 | 4 | 165x123x176 | ZS-50-92X | 4.8 | ||
