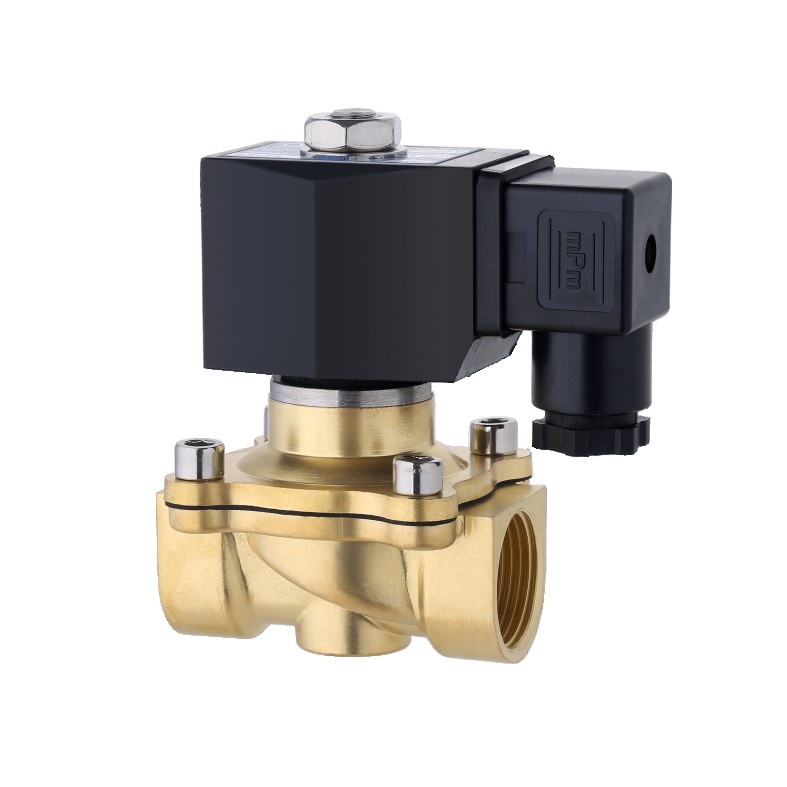

Features:
2/2way direct lifting diaphragm
0-5bar
Flow channel 3-500mm
Detachable repair
Sealing material: NBR rubber -fluoro rubber
Suitable for natural gas, coal gas
Provide lP65 three-pole connector in accordance with UNl lSO 4400 (DIN 43650A)/lead connection /explosion-proof coil
Product features
| General characteristics | |||
| Body material | Brass、Stainless stee! | ||
| Sealing material | NBR | VITON | |
| Temperature | 80℃ | 150℃ | |
| Insulation grade | H | ||
| Voltage | 220-230VAC 50-60Hz | 100-120VAC 60Hz | 12-24DC |
| Power | 22VA | 22VA | 17W |
| Ambient temperature | -10℃-80℃ | ||
| Installation | Installed according to the flow direction of the valve body.to improve the life and reliability, install it horizontal upward is best | ||
| Connection | The standard is G, and the thread requirements such as NPT can be selected. | ||
| Voltage fluctuation | ±10% | ||

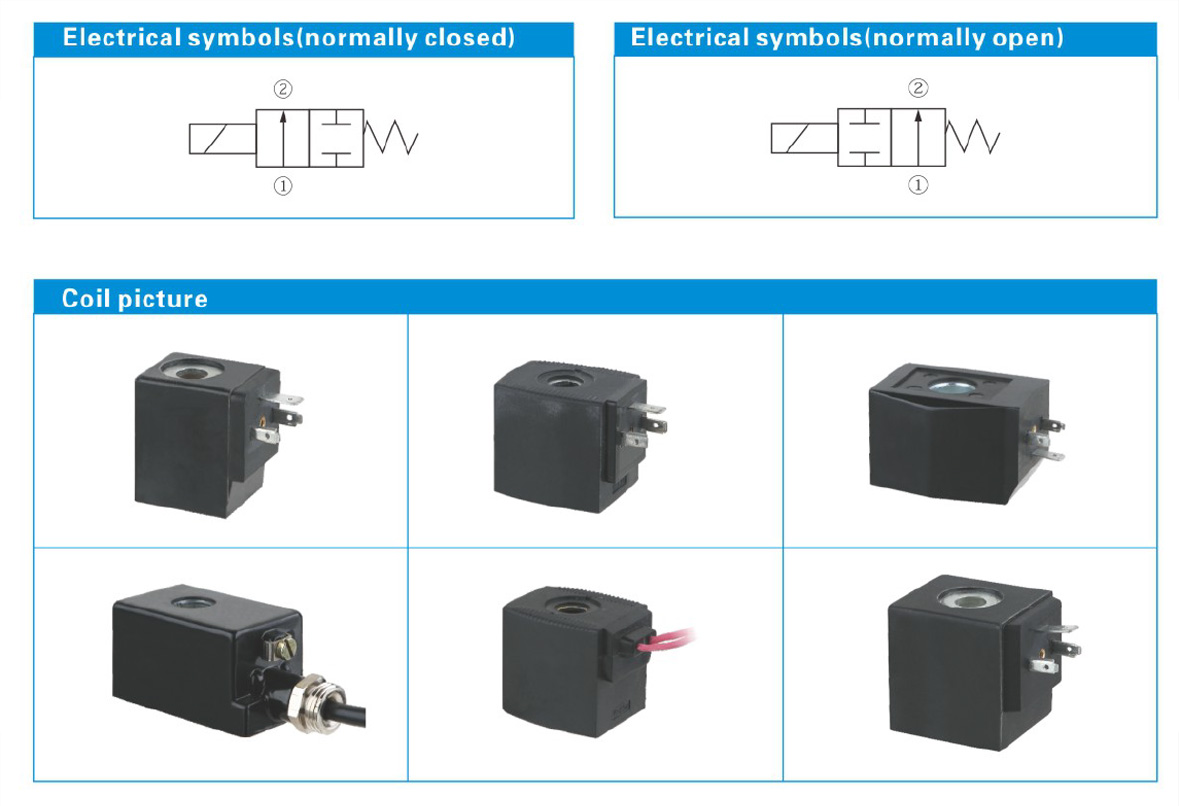

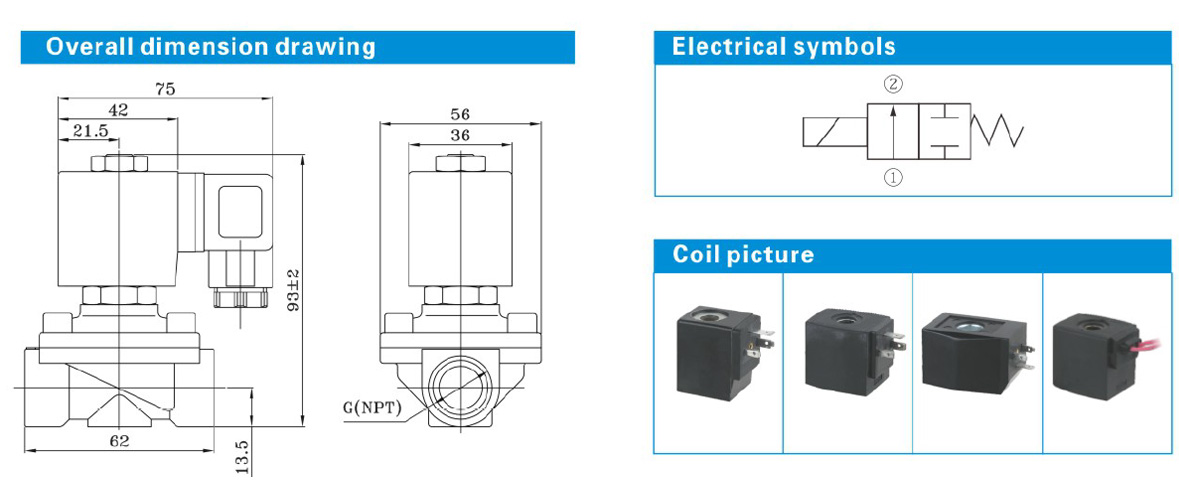

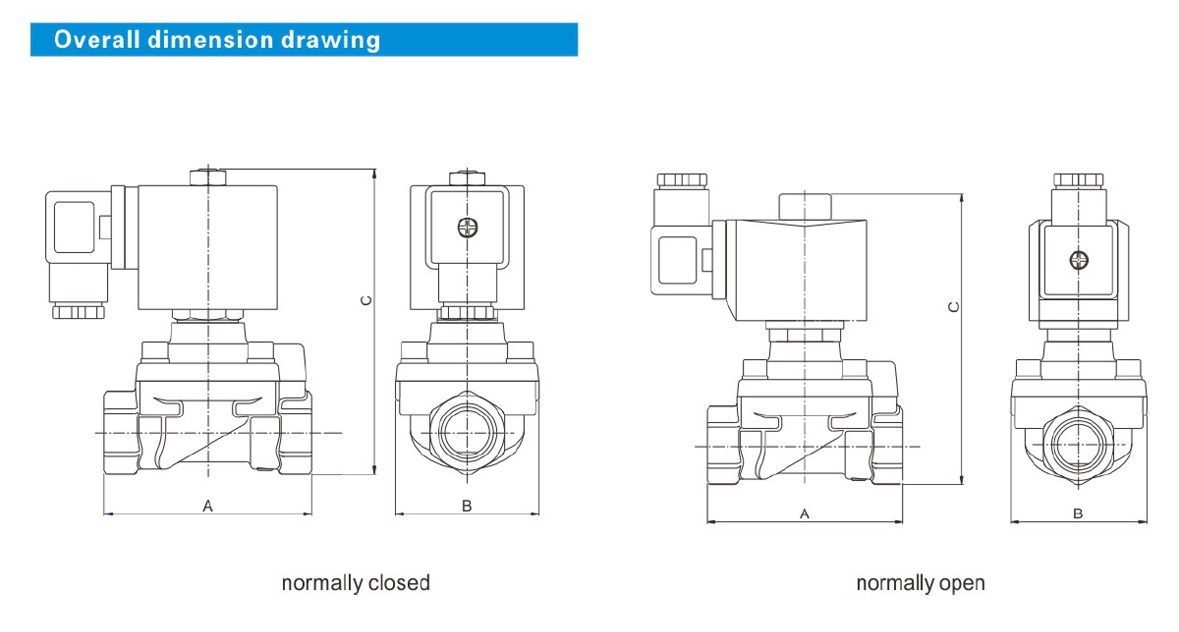

| Can be equipped with coil | B11/B21/B31/B32/E14 | ||
| Specification sheet | |||||||||||||
| Connection way | Flow aperturemm mm | KV value m3/h | Pressure difference(BAR) | Model(voltage is 220v)X=N or V | |||||||||
| MiniMum pressure | Maximum working pressure | ||||||||||||
| Air, gas | natural gas | coal gas | Body material | ||||||||||
| AC | DC | AC | DC | AC | DC | brass | stainless steel | ||||||
| 1/8" | 3.0 | 1.86 | 0 | 5 | 5 | 5 | 5 | 5 | 5 | ZCM-03-11X | ZCM-03-12X | ||
| 1/4" | 5.0 | 2.1 | 0 | 3 | 3 | 3 | 3 | 3 | 3 | ZCM-05-21X | ZCM-05-22X | ||
| 3/8" | 5.0 | 5.7 | 0 | 3 | 3 | 3 | 3 | 3 | 3 | ZCM-05-31X | ZCM-05-32X | ||
| 1/2" | 15 | 9.6 | 0 | 2 | 2 | 2 | 2 | 2 | 2 | ZCM-15-41X | ZCM-15-42X | ||
| 3/4" | 20 | 22 | 0 | 2 | 2 | 2 | 2 | 2 | 2 | ZCM-20-51X | ZCM-20-52X | ||
| 1" | 25 | 27 | 0 | 2 | 2 | 2 | 2 | 2 | 2 | ZCM-25-61X | ZCM-25-62X | ||
| 11/4" | 32 | 35 | 0 | 2 | 2 | 2 | 2 | 2 | 2 | ZCM-32-71X | ZCM-32-72X | ||
| 11/2" | 40 | 27 | 0 | 2 | 2 | 2 | 2 | 2 | 2 | ZCM-40-81X | ZCM-40-82X | ||
| 2" | 50 | 35 | 0 | 2 | 2 | 2 | 2 | 2 | 2 | ZCM-50-91X | ZCM-50-92X | ||
