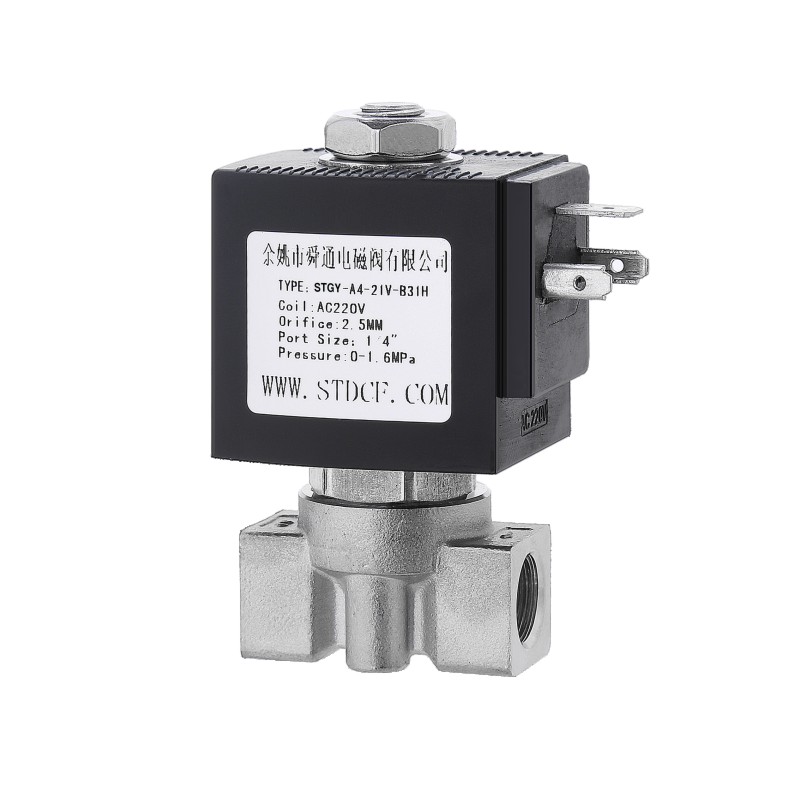

Features:
2/2 way high pressure normally closed
0-200bar
Flow channel 1.0-25mm
Detachable repair
Sealing material: NBR rubber - EPDM rubber - fluoro rubber- PTFE- specific material
Suitable for water, air, water vapor, light oil, natural gas, etc.
Provide lP65 three-pole connector in accordance with UNl ISO 4400 (DIN43650A)/lead connection
Product features
| General characteristics | |||
| Body material | Brass、Stainless steel | ||
| Sealing material | NBR | EPDM | VITON |
| Temperature | 80℃ | 140℃ | 150℃ |
| Insulation grade | H | ||
| Voltage | 220-230VAC 50-60Hz | 100-120VAC 60Hz | 12-24DC |
| Power | 22VA | 22VA | 17W-30W |
| Ambient temperature | -10℃-80℃ | ||
| Installation | Installed according to the flow direction of the valve body.to improve the life and reliability, install it horizontal upward is best | ||
| Connection | The standard is G, and the thread requirements such as NPT can be selected. | ||
| Voltage fluctuation | ±10% | ||
| Can be equipped with coil | B11/B21/B31/B32 | ||
| Specification sheet | ||||||||||
| Connection way | Flow aperturemm mm | KV value m3/h | Pressure difference(BAR) | Model(voltage is 220v)X=N or E or V | Weight KG | |||||
| MiniMum pressure | Maximum working pressure | |||||||||
| Air，gas | Body material | |||||||||
| AC | DC | brass | stainless steel | |||||||
| 1/8" | 1.2 | 0.08 | 0 | 190 | 170 | STTG-A1-11X | STTG-A1-12X | 0.48 | ||
| 2.0 | 0.14 | 0 | 120 | 100 | STTG-02-11X | STTG-02-12X | ||||
| 2.5 | 0.23 | 0 | 80 | 80 | STTG-A4-11X | STTG-A4-12X | ||||
| 3.0 | 0.25 | 0 | 50 | 50 | STTG-03-11X | STTG-03-12X | ||||
| 1/4" | 1.5 | 0.08 | 0 | 190 | 170 | STTG-A3-21X | STTG-A3-22X | 0.47 | ||
| 2.0 | 0.14 | 0 | 120 | 100 | STTG-02-21X | STTG-02-22X | ||||
| 2.5 | 0.23 | 0 | 80 | 80 | STTG-A4-21X | STTG-A4-22X | ||||
| 3.0 | 0.25 | 0 | 50 | 50 | STTG-03-21X | STTG-03-22X | ||||
| 9.0 | 1.0 | 2 | 110 | 90 | STTG-09-21X | STTG-09-22X | 1.18 | |||
| 3/8" | 3.0 | 0.25 | 0 | 50 | 50 | STTG-03-31X | STTG-03-32X | 1.17 | ||
| 4.0 | 0.6 | 0 | 30 | 25 | STTG-04-31X | STTG-04-32X | 0.47 | |||
| 9.0 | 1.2 | 2 | 110 | 90 | STTG-09-31X | STTG-09-32X | 1.16 | |||
| 15 | 4.2 | 2 | 100 | 100 | STTG-15-31X | STTG-15-32X | 1.35 | |||
| 1/2" | 9.0 | 1.2 | 2 | 110 | 90 | STTG-09-41X | STTG-09-42X | 1.15 | ||
| 15 | 4.2 | 2 | 100 | 100 | STTG-15-41X | STTG-15-42X | 1.25 | |||
| 3/4" | 20 | 7 | 2 | 80 | 80 | STTG-20-51X | STTG-20-52X | 1.53 | ||
| 1" | 25 | 11 | 2 | 65 | 65 | STTG-25-61X | STTG-25-62X | 2.27 | ||
