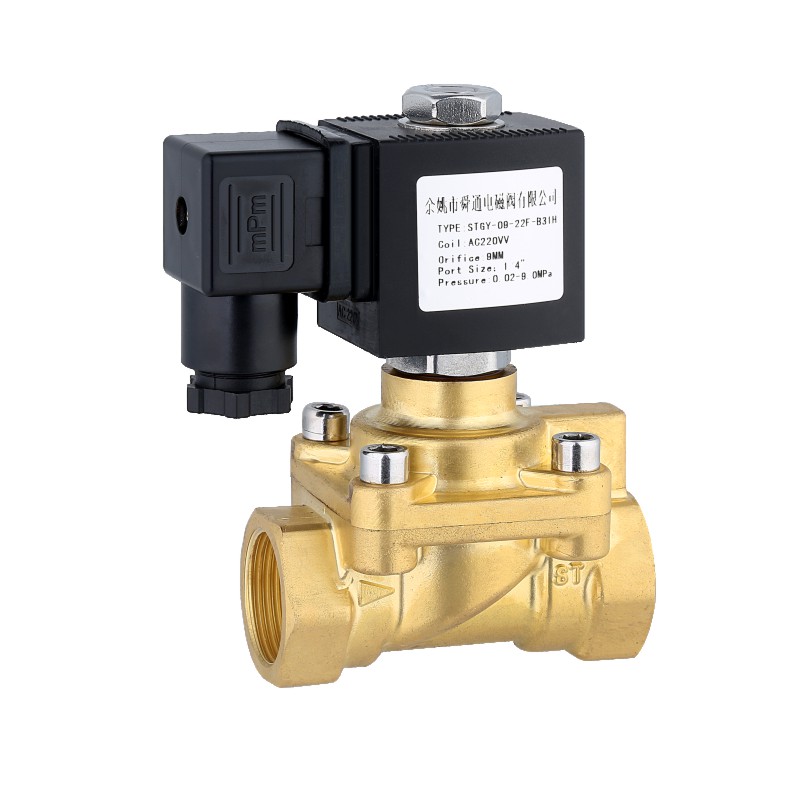

Features:
2/2 way high pressure normally closed / normally open
0-100bar
Flow channel 16.0mm
Detachable repairSealing material: NBR rubber - EPDM rubber - fluoro rubber
Suitable for water, air, water vapor, light oil, natural gas, etc.
Provide lP65 three-pole connector in accordance with UNl ISO 4400 (DIN43650A)/lead connection
Product features
| General characteristics | |||
| Body material | Brass、Stainless steel | ||
| Sealing material | NBR | EPDM | VITON |
| Temperature | 80℃ | 140℃ | 150℃ |
| Insulation grade | H | ||
| Voltage | 220-230VAC 50-60Hz | 100-120VAC 60Hz | 12-24DC |
| Power | 22VA | 22VA | 15W/17W |
| Ambient temperature | -10℃-80℃ | ||
| Installation | Installed according to the flow direction of the valve body.to improve the life and reliability, install it horizontal upward is best | ||
| Connection | The standard is G, and the thread requirements such as NPT can be selected. | ||
| Voltage fluctuation | ±10% | ||
| Can be equipped with coil | B11/B21/B31/B32/E11 | ||
| Specification sheet | ||||||||||||
| Connection way | Flow aperturemm mm | KV value m3/h | Pressure difference(BAR) | Dimensions Length x width x height AxBxC | Model(voltage is 220v)X=N or E or V | Weight KG | ||||||
| MiniMum pressure | Maximum working pressure | |||||||||||
| Air | Water | |||||||||||
| AC | DC | AC | DC | |||||||||
| 3/8" | 16 | 4.5 | 0.5 | 50 | 50 | 50 | 50 | 75x52x110 | STH-15-31X | 1.0 | ||
| 1/2" | 16 | 4.5 | 0.5 | 50 | 50 | 50 | 50 | 75x52x110 | STH-15-41X | 0.9 | ||
| 3/4" | 16 | 4.5 | 0.5 | 50 | 50 | 50 | 50 | 80x52x110 | STH-15-51X | 1.0 | ||
| Specification sheet | ||||||||||||
| Connection way | Flow aperturemm mm | KV value m3/h | Pressure difference(BAR) | Dimensions Length x width x height AxBxC | Model(voltage is 220v)X=N or E or V | Weight KG | ||||||
| MiniMum pressure | Maximum working pressure | |||||||||||
| Air | Water | |||||||||||
| AC | DC | AC | DC | |||||||||
| 3/8" | 16 | 4.5 | 0.5 | 50 | 50 | 50 | 50 | 75x52x110 | STH-15K-31X | 1.0 | ||
| 1/2" | 16 | 4.5 | 0.5 | 50 | 50 | 50 | 50 | 75x52x110 | STH-15K-41X | 0.9 | ||
| 3/4" | 16 | 4.5 | 0.5 | 50 | 50 | 50 | 50 | 80x52x110 | STH-15K-51X | 1.0 | ||
