Features:
3/2 way direct acting type
0-25bar
Flow channel 1.0-4.0mm
Detachable repair
Sealing material: NBR rubber - EPDM rubber - fuoro rubber - specific material
Suitable for water, air, water vapor, light oil, natural gas, etc.

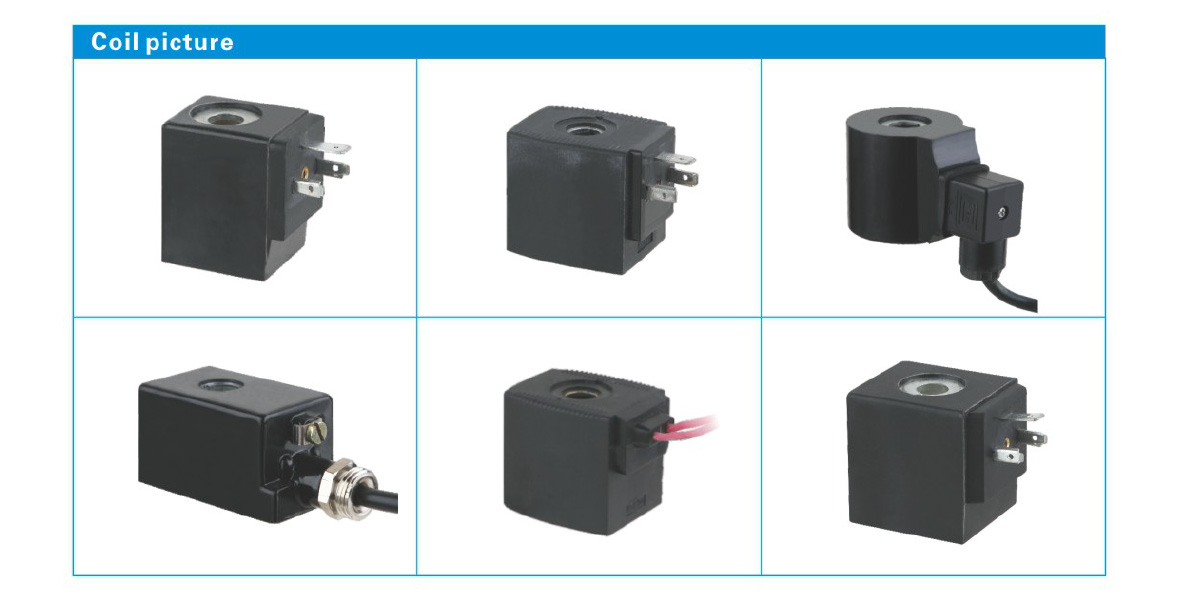

Provide lP65 three-pole connector in accordance with UNl ISO 4400 (DIN43650A)/lead connection
Product features

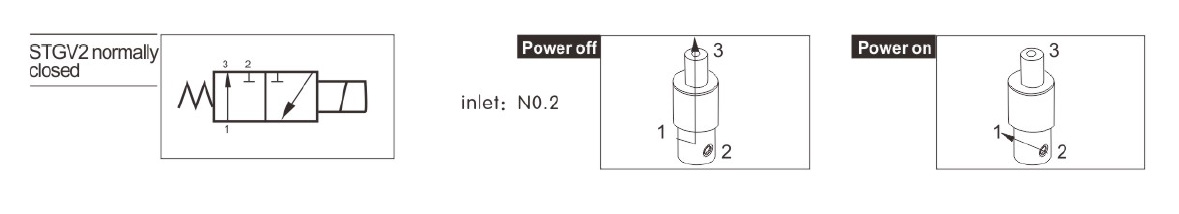

| STGV2 normally closed specification sheet | |||||||||||
| Connection way | Flow aperturemm mm | KV value m3/h | Pressure difference(BAR) | Model (voltage is 220v)X=N or E or V or F | |||||||
| MiniMum pressure | Maximum working pressure | ||||||||||
| Air, gas, Water, liquid | Light oil ≤20CST | ||||||||||
| AC | DC | AC | DC | brass | stainless steel | ||||||
| 1/8" | 1.5 | 0.07 | 0 | 13 | 11 | 13 | 11 | STGT2-A3-11X | STGT2-A3-12X | ||
| 2.0 | 0.14 | 0 | 11 | 9 | 11 | 9 | STGT2-02-11X | STGT2-02-12X | |||
| 2.5 | 0.21 | 0 | 9 | 7 | 9 | 7 | STGT2-A4-11X | STGT2-A4-12X | |||
| 3.0 | 0.25 | 0 | 6 | 4 | 6 | 4 | STGT2-03-11X | STGT2-03-12X | |||
| 4.0 | 0.35 | 0 | 3.5 | 2 | 3.5 | 2 | STGT2-04-11X | STGT2-04-12X | |||
| 1/4" | 1.5 | 0.07 | 0 | 13 | 11 | 13 | 11 | STGT2-A3-21X | STGT2-A3-22X | ||
| 2.0 | 0.14 | 0 | 11 | 9 | 11 | 9 | STGT2-02-21X | STGT2-02-22X | |||
| 2.5 | 0.21 | 0 | 9 | 7 | 9 | 7 | STGT2-A4-21X | STGT2-A4-22X | |||
| 3.0 | 0.25 | 0 | 6 | 4 | 6 | 4 | STGT2-03-21X | STGT2-03-22X | |||
| 4.0 | 0.35 | 0 | 3.5 | 2 | 3.5 | 2 | STGT2-04-21X | STGT2-04-22X | |||
| STGV3 normally closed specification sheet | |||||||||||
| Connection way | Flow aperturemm mm | KV value m3/h | Pressure difference(BAR) | Model (voltage is 220v)X=N or E or V or F | |||||||
| MiniMum pressure | Maximum working pressure | ||||||||||
| Air, gas, Water, liquid | Light oil ≤20CST | ||||||||||
| AC | DC | AC | DC | brass | stainless steel | ||||||
| 1/8" | 1.5 | 0.07 | 0 | 13 | 11 | 13 | 11 | STGT3-A3-11X | STGT3-A3-12X | ||
| 2.0 | 0.14 | 0 | 11 | 9 | 11 | 9 | STGT3-02-11X | STGT3-02-12X | |||
| 2.5 | 0.21 | 0 | 9 | 7 | 9 | 7 | STGT3-A4-11X | STGT3-A4-12X | |||
| 3.0 | 0.25 | 0 | 6 | 4 | 6 | 4 | STGT3-03-11X | STGT3-03-12X | |||
| 4.0 | 0.35 | 0 | 3.5 | 2 | 3.5 | 2 | STGT3-04-11X | STGT3-04-12X | |||
| 1/4" | 1.5 | 0.07 | 0 | 13 | 11 | 13 | 11 | STGT3-A3-21X | STGT3-A3-22X | ||
| 2.0 | 0.14 | 0 | 11 | 9 | 11 | 9 | STGT3-02-21X | STGT3-02-22X | |||
| 2.5 | 0.21 | 0 | 9 | 7 | 9 | 7 | STGT3-A4-21X | STGT3-A4-22X | |||
| 3.0 | 0.25 | 0 | 6 | 4 | 6 | 4 | STGT3-03-21X | STGT3-03-22X | |||
| 4.0 | 0.35 | 0 | 3.5 | 2 | 3.5 | 2 | STGT3-04-21X | STGT3-04-22X | |||
