Features:
2/2 way direct acting type nomally closed
0-25bar
Flow channel 1.0-6.0mm
Detachable repair
Sealing material: NBR rubber - EPDM rubber - fluoro rubber- PTFE - specific material
Suitable for water, air, water vapor, light oil, natural gas, etc.
Provide IP65 three-pole connector in accordance with UNl 1SO 4400 (DIN43650A)/ lead connection/explosion-proof coil
Product features
| General characteristics | |||
| Body material | Brass、Stainless steel(Configurableintegrated ) | ||
| Sealing material | NBR | EPDM | VITON |
| Temperature | 80℃ | 140℃ | 150℃ |
| Insulation grade | H | ||
| Voltage | 220-230VAC 50-60Hz | 100-120VAC 60Hz | 12-24DC |
| Power | 22VA | 22VA | 15W/17W |
| Ambient temperature | -10℃-80℃ | ||
| Installation | Installed according to the flow direction of the valve body.to improve the life and reliability, install it horizontal upward is best | ||
| Connection | The standard is G, and the thread requirements such as NPT can be selected. | ||
| Voltage fluctuation | ±10% | ||
| Can be equipped with coil | B11/B21/B31/B32/B81/E11 | ||

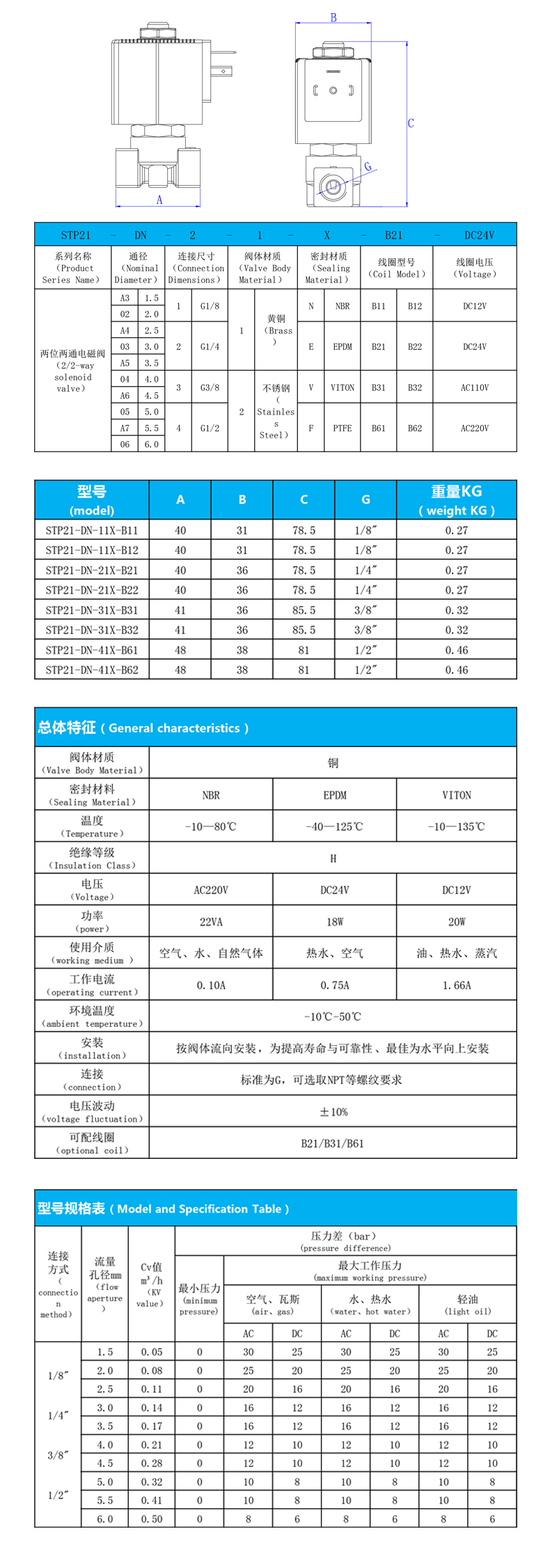

| Specification sheet | |||||||||||
| Connection way | Flow aperturemm mm | KV value m3/h | Pressure difference(BAR) | Model (voltage is 220v)X=N or E or V or F | |||||||
| MiniMum pressure | Maximum working pressure | ||||||||||
| Air, gas, Water, liquid | Light oi | Body material | |||||||||
| AC | DC | AC | DC | brass | stainless steel | ||||||
| 1/8" | 1.0 | 0.02 | 0 | 30 | 30 | 25 | 25 | STP21-01-11X | STP21-01-12X | ||
| 1.2 | 0.03 | 0 | 26 | 26 | 20 | 20 | STP21-A2-11X | STP21-A2-12X | |||
| 1.5 | 0.06 | 0 | 20 | 20 | 15 | 15 | STP21-A3-11X | STP21-A3-12X | |||
| 2.0 | 0.06 | 0 | 18 | 18 | 13 | 13 | STP21-02-11X | STP21-02-12X | |||
| 2.5 | 0.13 | 0 | 15 | 15 | 10 | 10 | STP21-A4-11X | STP21-A4-12X | |||
| 3.0 | 0.21 | 0 | 12 | 12 | 8 | 8 | STP21-03-11X | STP21-03-12X | |||
| 4.0 | 0.35 | 0 | 10 | 10 | 6 | 6 | STP21-04-11X | STP21-04-12X | |||
| 5.0 | 0.46 | 0 | 8 | 8 | 4 | 4 | STP21-05-11X | STP21-05-12X | |||
| 1/4" | 1.0 | 0.02 | 0 | 30 | 30 | 25 | 25 | STP21-01-21X | STP21-01-22X | ||
| 1.2 | 0.03 | 0 | 26 | 26 | 20 | 20 | STP21-A2-21X | STP21-A2-22X | |||
| 1.5 | 0.06 | 0 | 20 | 20 | 15 | 15 | STP21-A3-21X | STP21-A3-22X | |||
| 2.0 | 0.06 | 0 | 18 | 18 | 13 | 13 | STP21-02-21X | STP21-02-22X | |||
| 2.5 | 0.13 | 0 | 15 | 15 | 10 | 10 | STP21-A4-21X | STP21-A4-22X | |||
| 3.0 | 0.21 | 0 | 12 | 12 | 8 | 8 | STP21-03-21X | STP21-03-22X | |||
| 4.0 | 0.35 | 0 | 10 | 10 | 6 | 6 | STP21-04-21X | STP21-04-22X | |||
| 5.0 | 0.46 | 0 | 8 | 8 | 4 | 4 | STP21-05-21X | STP21-05-22X | |||
| 6.0 | 0.52 | 0 | 8 | 8 | 4 | 4 | STP21-06-21X | STP21-06-22X | |||
| 3/8" | 3.0 | 0.21 | 0 | 12 | 12 | 8 | 8 | STP21-03-31X | STP21-03-32X | ||
| 4.0 | 0.35 | 0 | 10 | 10 | 6 | 6 | STP21-04-31X | STP21-04-32X | |||
| 5.0 | 0.46 | 0 | 8 | 8 | 4 | 4 | STP21-05-31X | STP21-05-32X | |||
| 6.0 | 0.52 | 0 | 8 | 8 | 4 | 4 | STP21-06-31X | STP21-06-32X | |||
