  • STP11 series pilot operated diaphragmBrass 22 way normally closed type

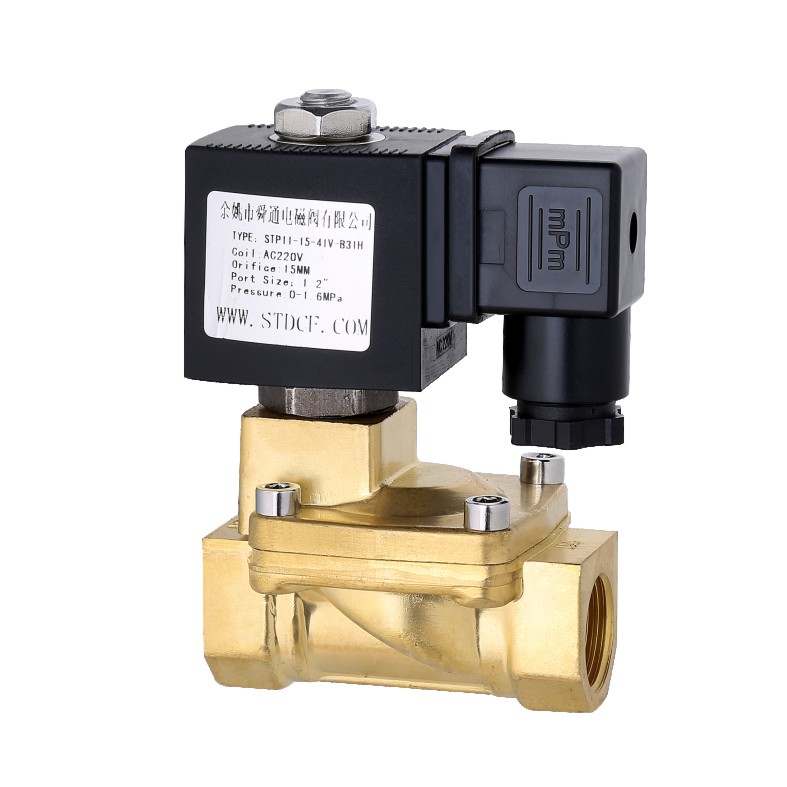

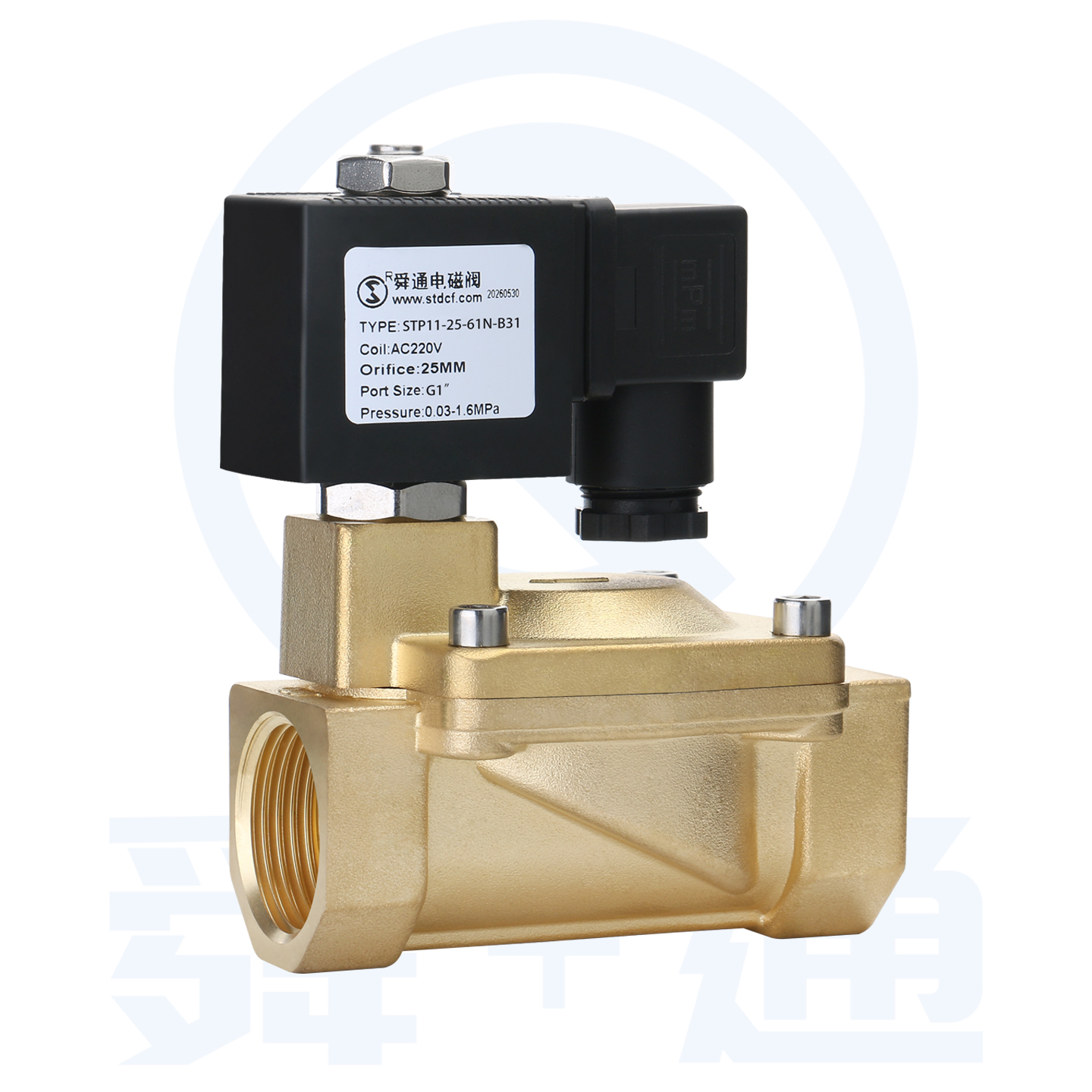

STP11 series pilot operated diaphragmBrass 22 way normally closed type

Features:
2/2 way pilot operated diaphragm type normally closed
0-16bar (Max 20bar)
Flow channel 15-50mm
Detachable repair
Sealing material: NBR rubber - EPDM rubber - fuoro rubber- specific material
Suitable for water, air, water vapor, light oil, natural gas, etc.
Provide IP65 three-pole connector in accordance with UN lSO 4400 (DIN 43650A)/lead connection/explosion-proof coil

Product features

General characteristics
Body materialBrass
Sealing   materialNBREPDMVITON
Temperature80140150
Insulation   gradeH
Voltage220-230VAC 50-60Hz100-120VAC 60Hz12-24DC
Power22VA22VA15W/17W
Ambient   temperature-10-80
InstallationInstalled according to the   flow direction of the valve body.to improve the life and reliability, install   it horizontal upward is best
ConnectionThe standard is G, and the   thread requirements such as NPT can be selected.
Voltage   fluctuation±10%
Can be   equipped with coilB11/B31/B32

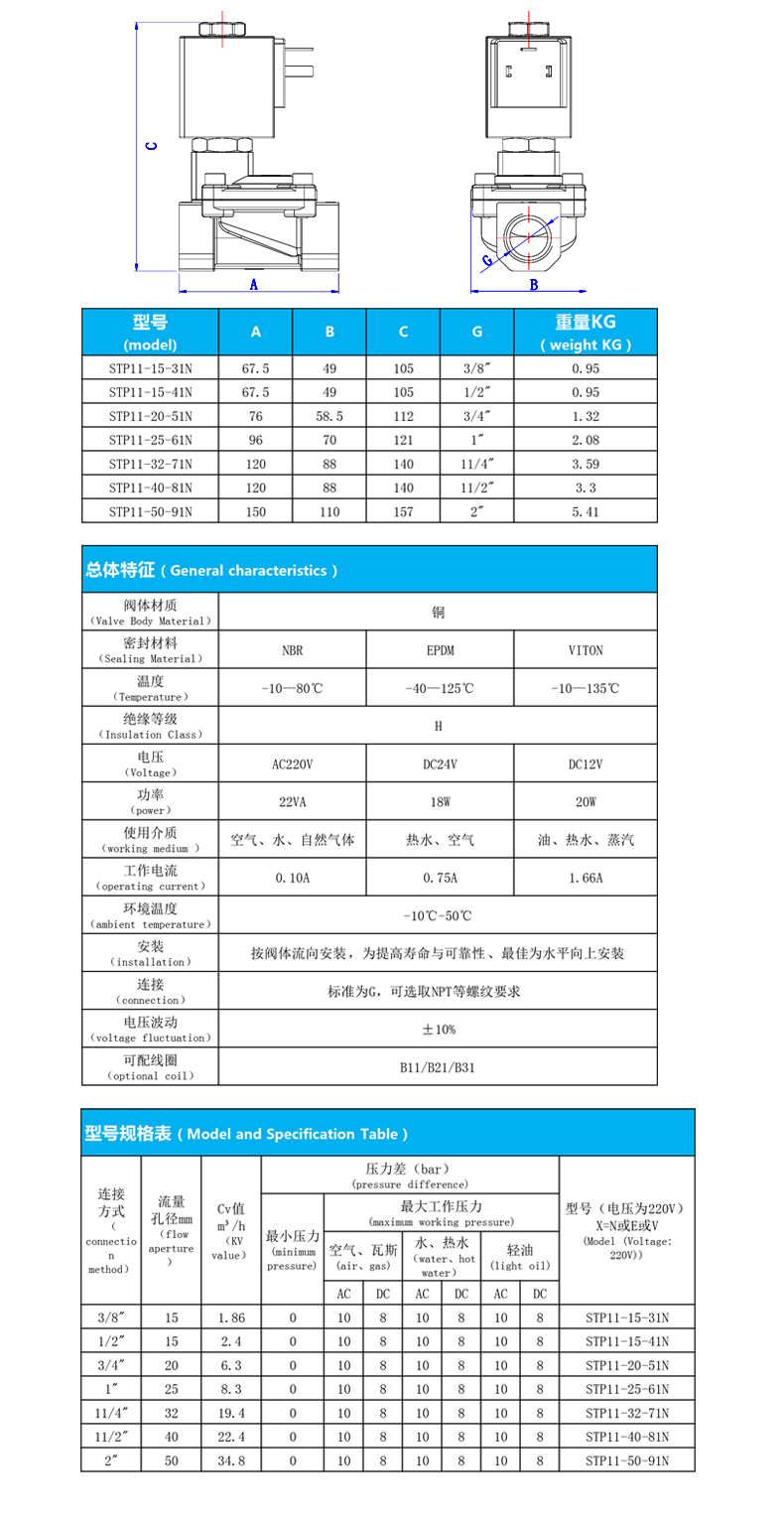

Specification sheet
Connection
way
Flow
aperturemm
mm
KV
value
m3/h
Pressure difference(BAR)DimensionsLength
  x width x height
    AxBxC
Model(voltage   is 220v)X=N or E or VWeight
    KG
MiniMum
pressure
Maximum working pressure
AirgasWater, liquidLight oi
ACDCACDCACDC
3/8"152.40.31616
1375x48x106STP11-15-31X0.8
1/2"152.40.31616
1375x48x106STP11-15-41X0.7
3/4"206.30.316161375x58x112STP11-20-51X0.9
1"258.30.316161396x70x131STP11-25-61X1.4
11/4"3219.40.3161613131x96x146STP11-32-71X2.8
11/2"4022.40.3161613131x96x146STP11-40-81X2.7
2"5034.80.3161613165x120x167STP11-50-91X4
