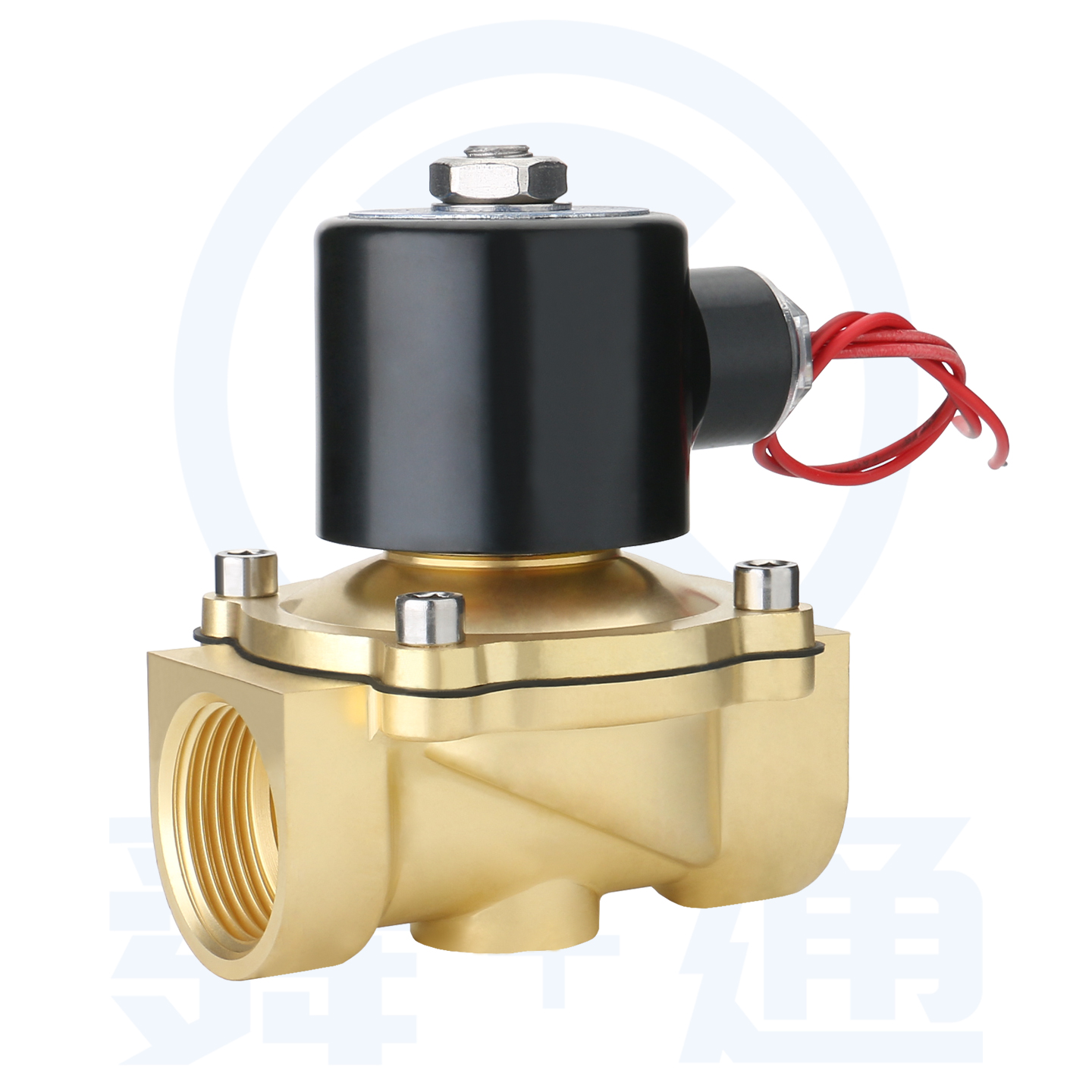

Features:
2/2way direct lifting diaphragm type normally closed
0-8bar
Flow channel 15-100mm
Detachable repair
Sealing material: NBR rubber - EPDM rubber - fluoro rubber- specific material
Suitable for water, air, water vapor, light oil, natural gas, etc.
lead connection
Product features
| General characteristics | |||
| Body material | Stainless steel | ||
| Sealing material | NBR | EPDM | VITON |
| Temperature | 80℃ | 140℃ | 150℃ |
| Insulation grade | H | ||
| Voltage | 220-230VAC 50-60Hz | 100-120VAC 60Hz | 12-24DC |
| Power | 22VA | 22VA | 18W |
| Ambient temperature | -10℃-80℃ | ||
| Installation | Installed according to the flow direction of the valve body.to improve the life and reliability, install it horizontal upward is best | ||
| Connection | The standard is G, and the thread requirements such as NPT can be selected. | ||
| Voltage fluctuation | ±10% | ||
| Can be equipped with coil | A32/A42 | ||

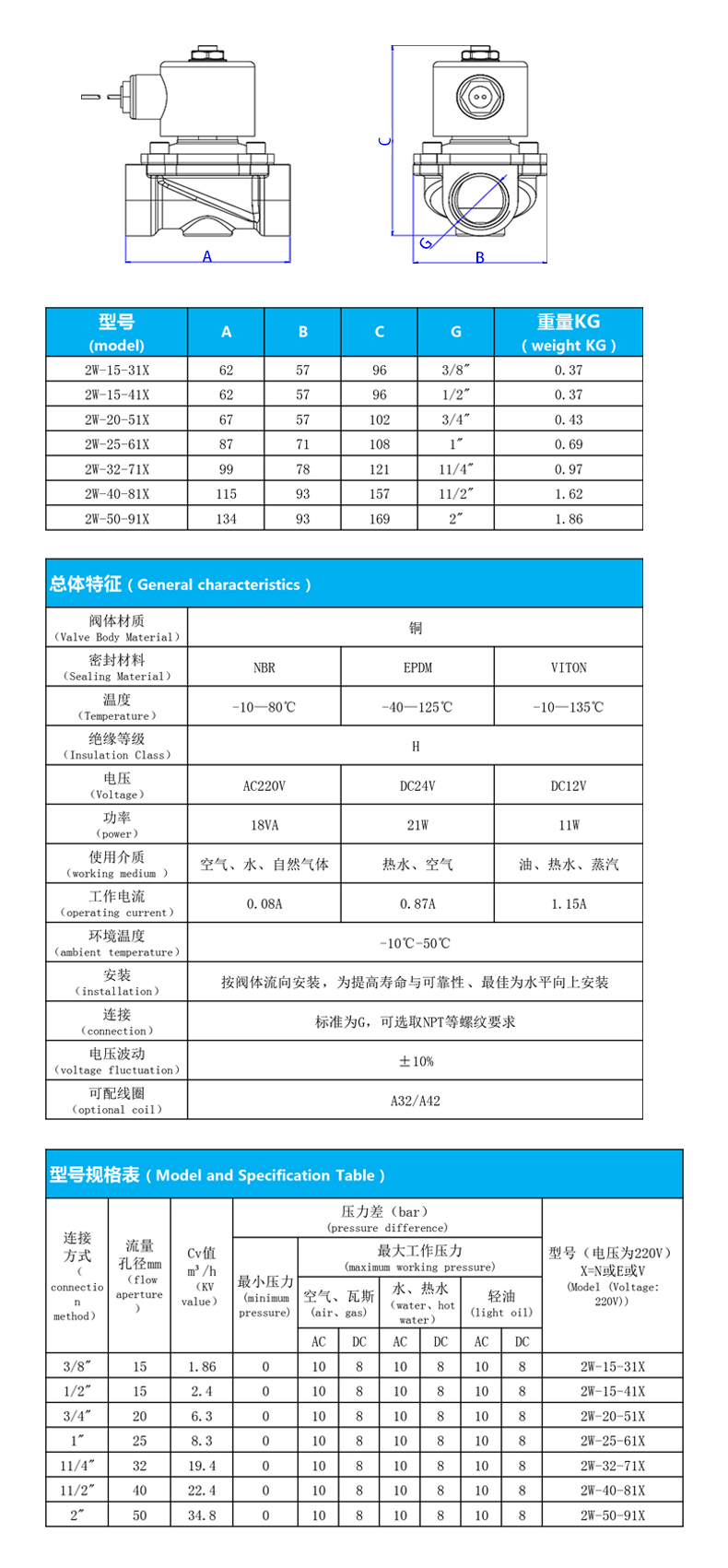

| Specification sheet | ||||||||||||
| Connection way | Flow aperturemm mm | KV value m3/h | Pressure difference(BAR) | Model(voltage is 220v)X=N or E or V | ||||||||
| MiniMum pressure | Maximum working pressure | |||||||||||
| Air, gas | Water, hot water | Light oi | ||||||||||
| AC | DC | AC | DC | AC | DC | |||||||
| 3/8" | 15 | 1.86 | 0 | 8 | 7 | 8 | 7 | 8 | 4 | 2W-15-32X | ||
| 1/2" | 15 | 2.1 | 0 | 8 | 7 | 8 | 7 | 8 | 4 | 2W-15-42X | ||
| 3/4" | 20 | 5.7 | 0 | 8 | 7 | 8 | 7 | 8 | 4 | 2W-20-52X | ||
| 1" | 25 | 9.6 | 0 | 8 | 7 | 8 | 7 | 8 | 4 | 2W-25-62X | ||
| 11/4" | 32 | 22 | 0 | 8 | 7 | 8 | 7 | 8 | 4 | 2W-32-72X | ||
| 11/2" | 40 | 27 | 0 | 8 | 7 | 8 | 7 | 8 | 4 | 2W-40-82X | ||
| 2" | 50 | 35 | 0 | 8 | 7 | 8 | 7 | 8 | 4 | 2W-50-92X | ||
| 21/2" | 65 | 22 | 0 | 8 | 7 | 8 | 7 | 8 | 4 | 2W-65-A2X | ||
| 3" | 80 | 27 | 0 | 8 | 7 | 8 | 7 | 8 | 4 | 2W-80-B2X | ||
| 4" | 100 | 35 | 0 | 8 | 7 | 8 | 7 | 8 | 4 | 2W-100-C2X | ||
